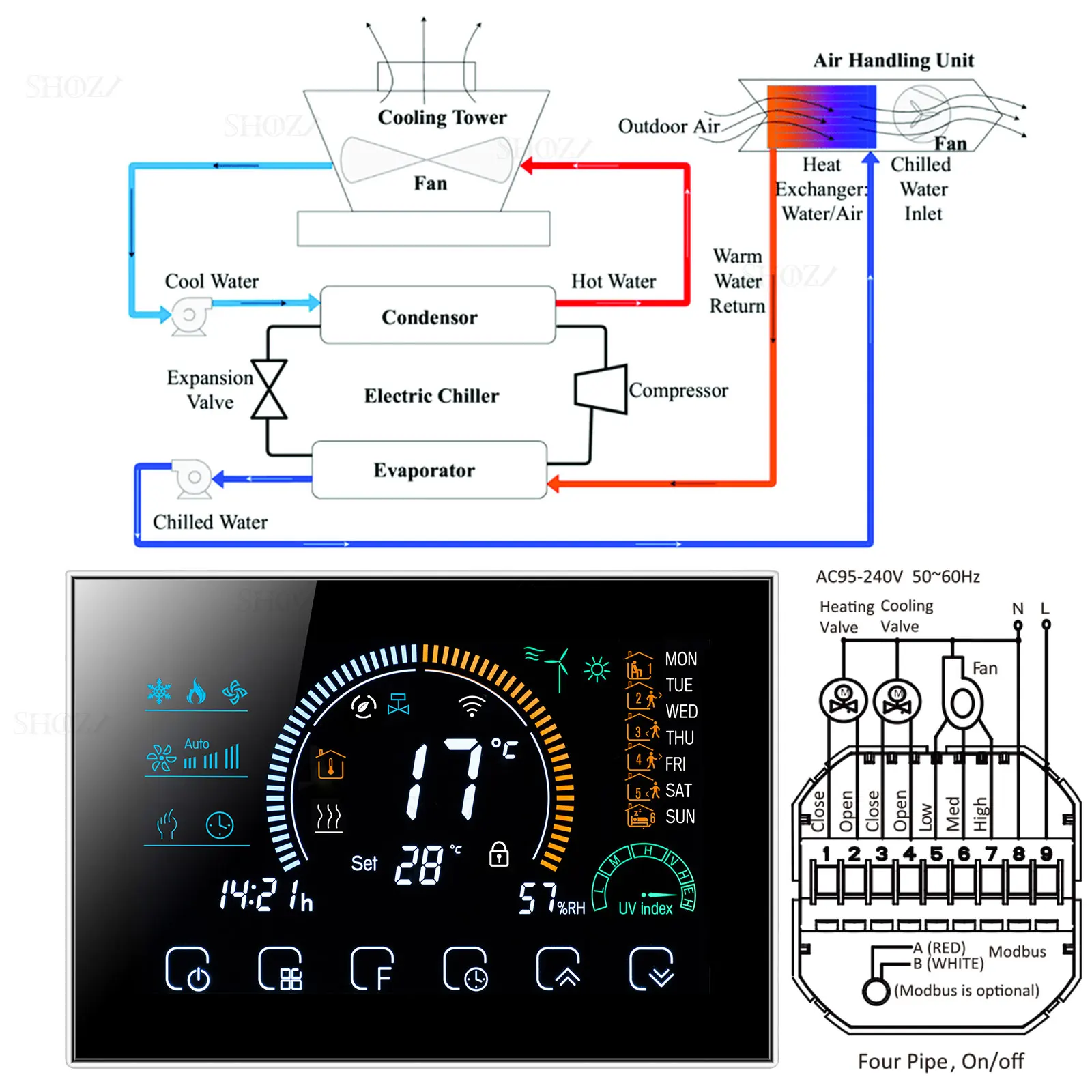

WIFI/RS485 Modbus RTU Programmable Thermostat for Control 2/4-Way Valve Heat/Cool HAVC Air System 24V/220V

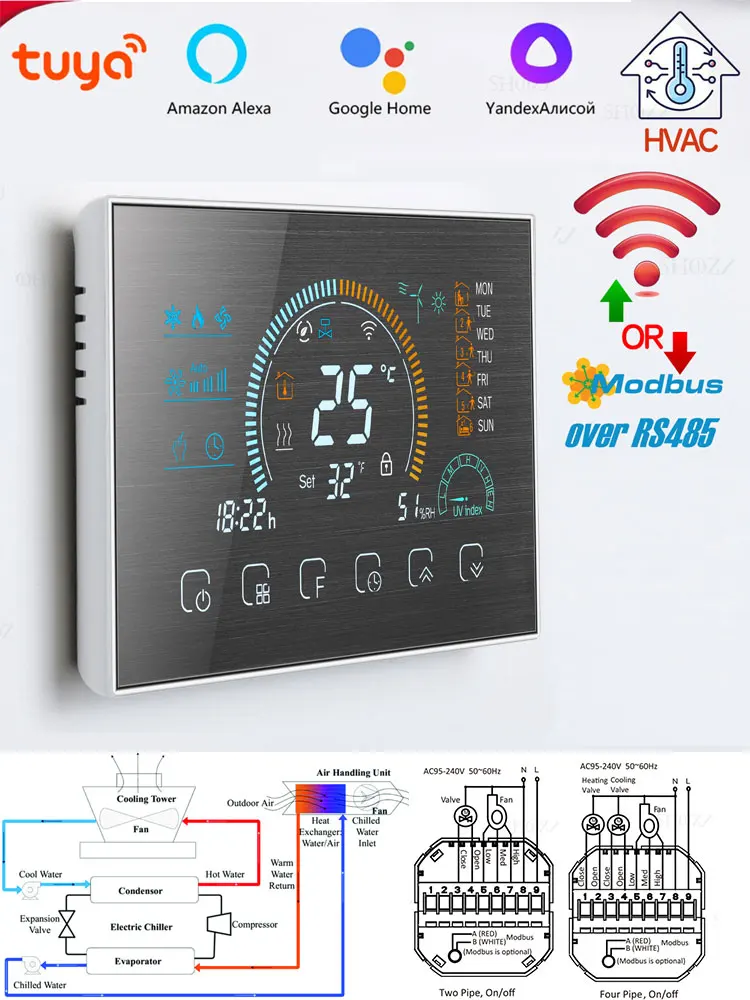

The WIFI/RS485 Modbus RTU Programmable Thermostat is a leading-edge solution designed to control 2/4-Way valve heat/cool HAVC air systems. The product operates seamlessly on a 24V/220V power supply, enabling efficient power consumption. It uses both Wi-Fi and RS485 Modbus RTU protocols, enabling a smart, interconnected experience for users. Notably, it excels in communication with other devices in your network, enabling real-time data transmission and remote access.

The thermostat grants the ability to program specific temperature settings at different times, providing incomparable comfort, convenience, and energy efficiency. The automated function makes it suitable for various settings, including residential, commercial, or industrial environments, providing ultimate control over a building’s heating, ventilation, and air conditioning systems.

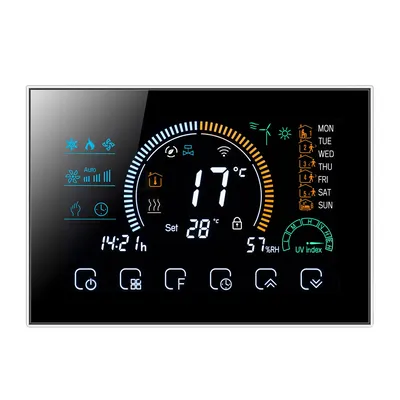

Additionally, the product includes a digital display, providing clear real-time information about the current temperature and settings. The user-friendly interface allows users to easily customize settings to their liking.

Lastly, the specific design of the WIFI/RS485 Modbus RTU Programmable Thermostat allows it to control both heat and cool systems. This makes it a versatile tool in any climate control situation, ensuring optimal temperature levels are maintained. Its advanced features enable users to automate their environments, adhering to modern technological readiness and sustainability standards.

FEATURES

On Appearance:

Note:

The MODBUS version does not have weather function, temperature and humidity function,

Please confirm that this product is suitable for your heating

equipment before installation;

*Before installation or maintenance, please make sure to keep

the power off;

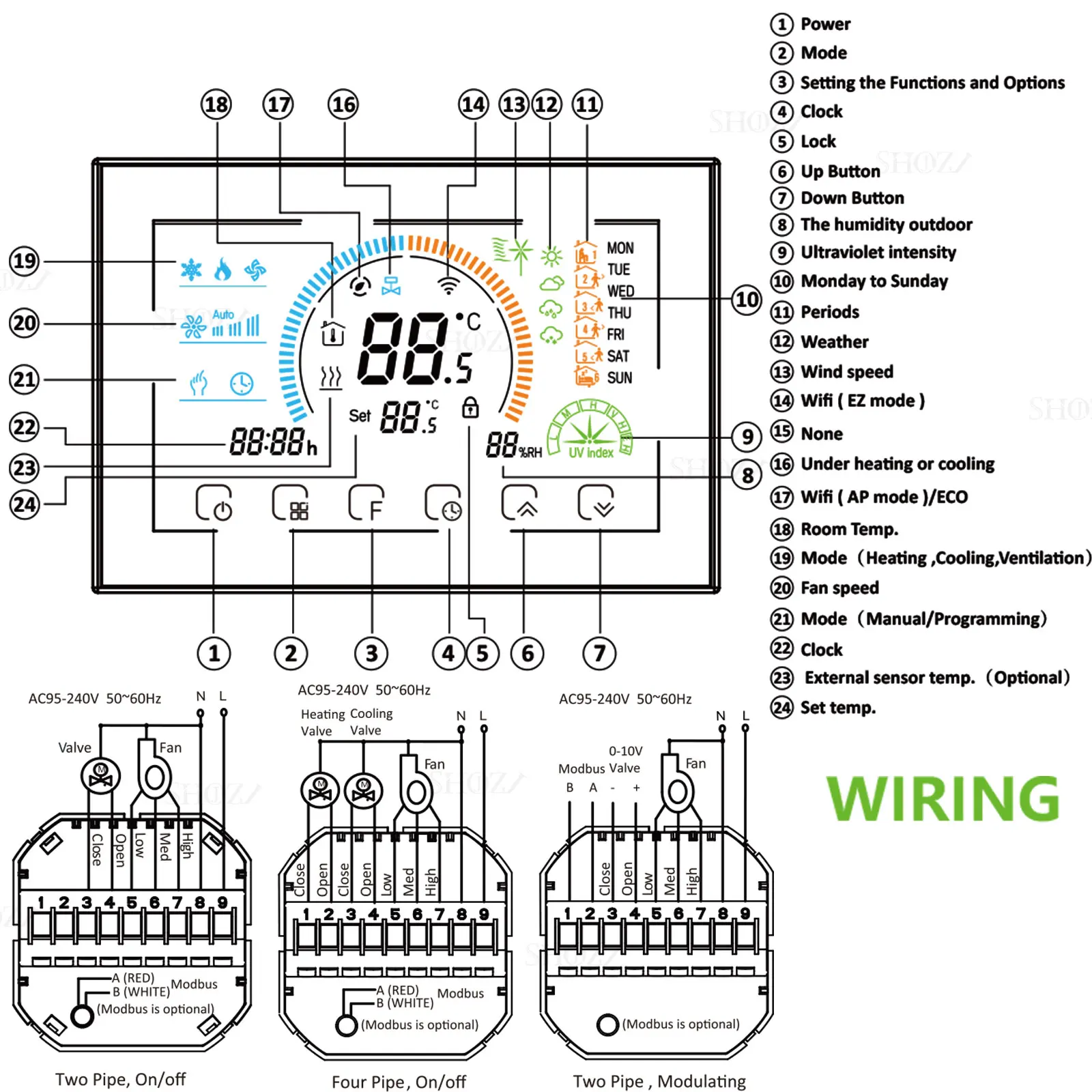

*Please strictly follow the wiring diagram for wiring installation;

*Installation to the wall, please confirm that the fasteners are

suitable for this product;

*Do not pull the cable too hard, otherwise the product will

be damaged;

*If a hard plastic wire is used in the installation process, it must

be bent to an appropriate angle in advance;

*Please arrange for professionals to install;

*Please contact the after-sales service for equipment failure,

please do not try to repair it yourself;

* After installation, please refer to this manual to check again to

ensure normal and safe use, and keep this manual properly.

If you are not a technician, please contact us before purchasing. We will reply to you as soon as possible to help you check whether it is supported and tell you how to install it.

1.Powerful functions are available such as WIFl etc,.

2.0.5℃ acuracy keeps temperature within the level you set.

3.Data memory when power is off.

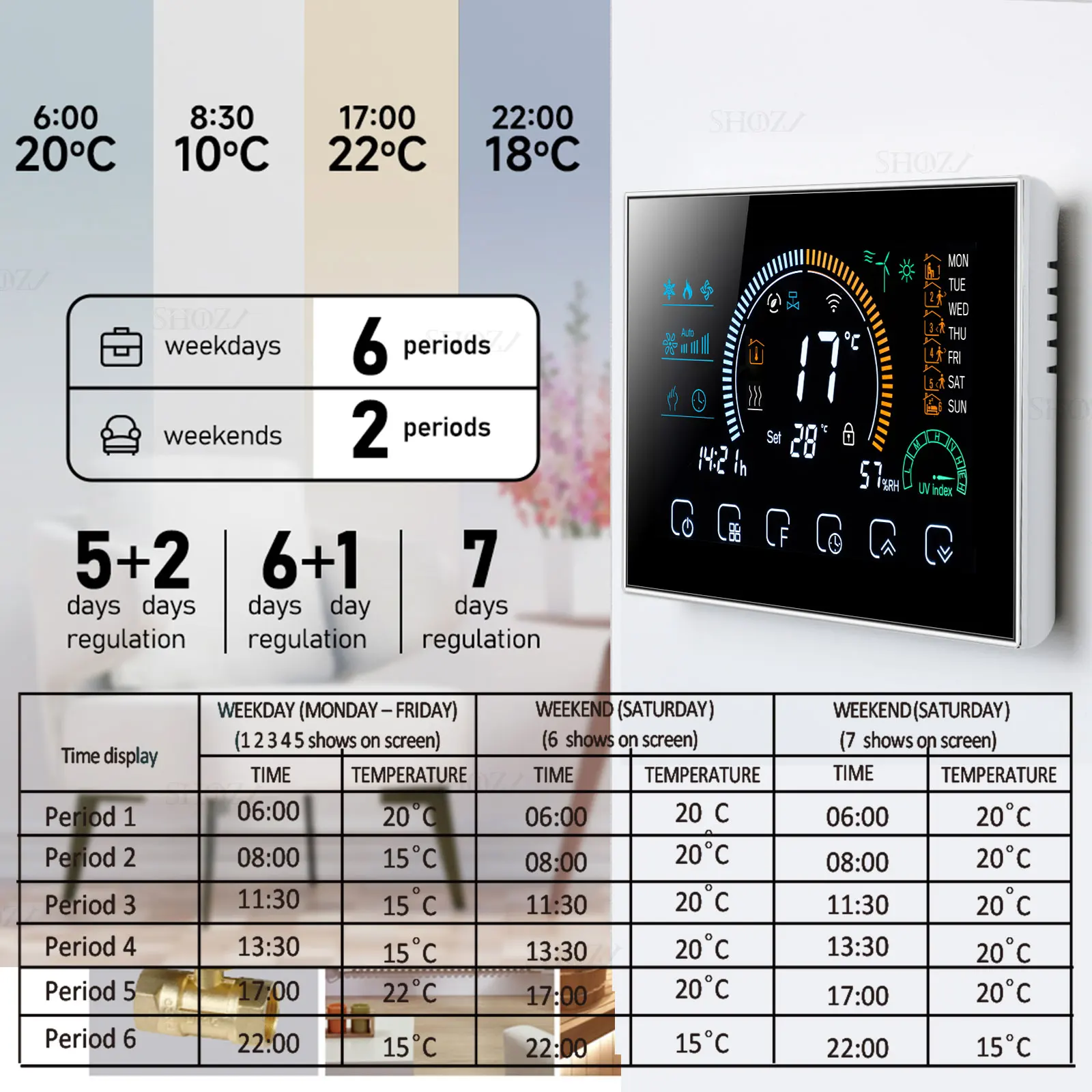

4.5+1+1 six periods programmable maximize comfort and econom5.Temporary programmable.

6.All setting languages sunchronize your time zone, address andlanguage.

7.No limit to add thermostats in App and support Smart Scene..

8.Create thermostat group to Centralized control.

9. Integrate with Amazon Echo,Google Home.Yandex Alice

10.Support device sharing.

11.Weather, UV index, humidity display help you decide what towear today.

TECHNICAL DATA:

Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ

Fan Relay Amps Resistance: 5A; Inductive: 3A

Valve Relay Amps Resistance: 3A; Inductive: 1A

Sensor: NTC3950, 10K

Set Temp. Range: 5 -35 ℃

Accuracy: ±0.5 ℃

Dispaly Temp. Range: 5 ~ 99℃

Ambient Temp.:0~45 ℃

Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

Storage Temp.:-5~ 45 CTiming Error: < 1%

Power Consumption: <1.5W

Shell Material: PC +ABS ( Fireproof)

Installation Box: 86 * 86mm Square or European 60mm Round

BoxWire Terminals: Wire 2 X 1.5 mm² or 1 x2.5 mm²

Protection Class: IP20

Buttons: Capactive Touch Buttons

On Functionality:

1. Negative black sceen will bring you to a secret world.

2. 4.8 inch Large colorful screen display area, creates your colorful life.

3. Touch buttons to make simple operation.

4. Amazing Silver Frame opens your modern life.

5. The visiable thickenss above the wall is only 15mm.

6. The snap connection allows you to easily install.

7. 86mm hidden box and European 60mm round box is suitable.

8. White, black or brushed stainless steel for your selection.

9. Wrap-around cooling holes help heat to escape quickly and avoid

affecting temperature detection.

1. Read these instructions carefully. Failure to follow them could

damage the product or cause a hazardous condition.

2. Check the rathings given in the instructions and on the product to

make sure the product is suitable for your application.

3. Installer must be a trained, experienced service technician.

4. After installation is complete, check out product operation as

provided in these instructions.
