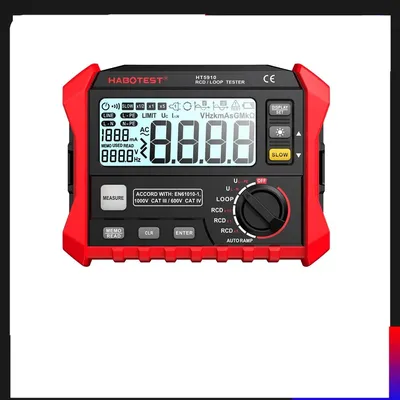

Leakage Switch Tester LCD Digital Resistance Meter RCD/Loop Tester 1000 Data Storage Voltmeter Megohmmeter

The Leakage Switch Tester LCD Digital Resistance Meter RCD/Loop Tester 1000 Data Storage Voltmeter Megohmmeter is a multi-functional electrical device. It is used extensively in various sectors, such as electrical maintenance and inspection, to assess different electrical parameters of an electrical system or component. It features an LCD digital readout, enhancing the accuracy and precision of the readings and enabling easy visibility even in lowly lit environments. This tool is capable of testing leakage switches, resistance, loop impedance, and voltage. The metering is done digitally, which enhances its reliability and accuracy. With storage capacity for 1000 data points, it provides ample space for holding a multitude of measurements, allowing for trend analysis and data comparison. This tool is also equipped with a voltmeter and megohmmeter, broadening the device’s functionality and making it suitable for various testing needs. The device is designed to accomplish many tasks, resulting in comprehensive and thorough tests and measurements. These features make the Leakage Switch Tester LCD Digital Resistance Meter RCD/Loop Tester 1000 Data Storage Voltmeter Megohmmeter a versatile and reliable testing tool for any professional working with electricity.

• SPECIFICATION

Features:
Multifunctional for measuring the trip current, trip time, loop resistance of switch leakage, and the voltage, frequency of on-line voltage, RCD(earth leakage switch), AUTORAMP(triggered current).
Functional features of the measurement of jump-off current, jump-off time, contact voltage, loop resistance.
Up to 1000 sets of test results can be stored, convenient for further inquiry.

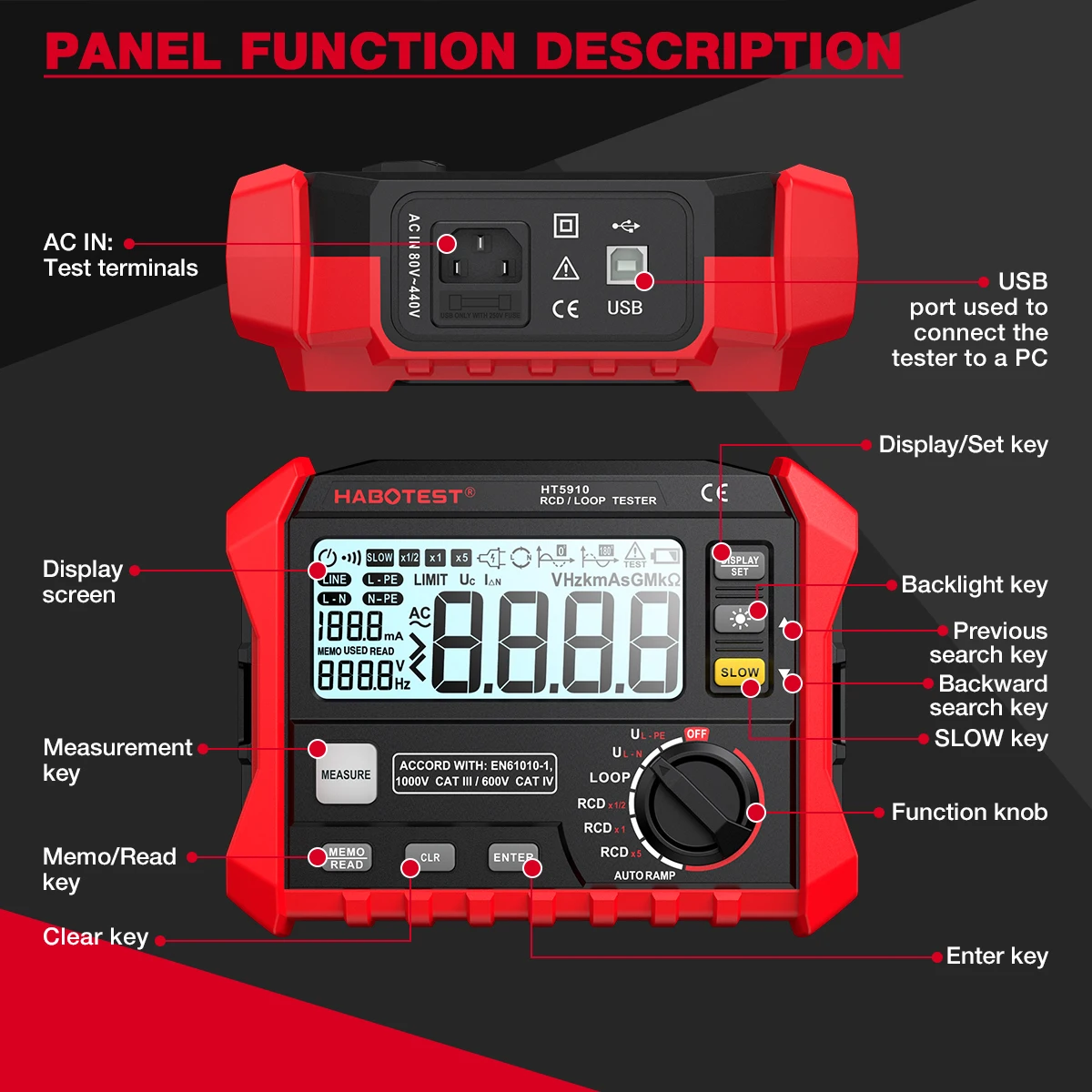

Data stored in the host can be uploaded to a PC via the USB 2.0 interface.
The compact portable resistance tester is easy to use and has stable performance.

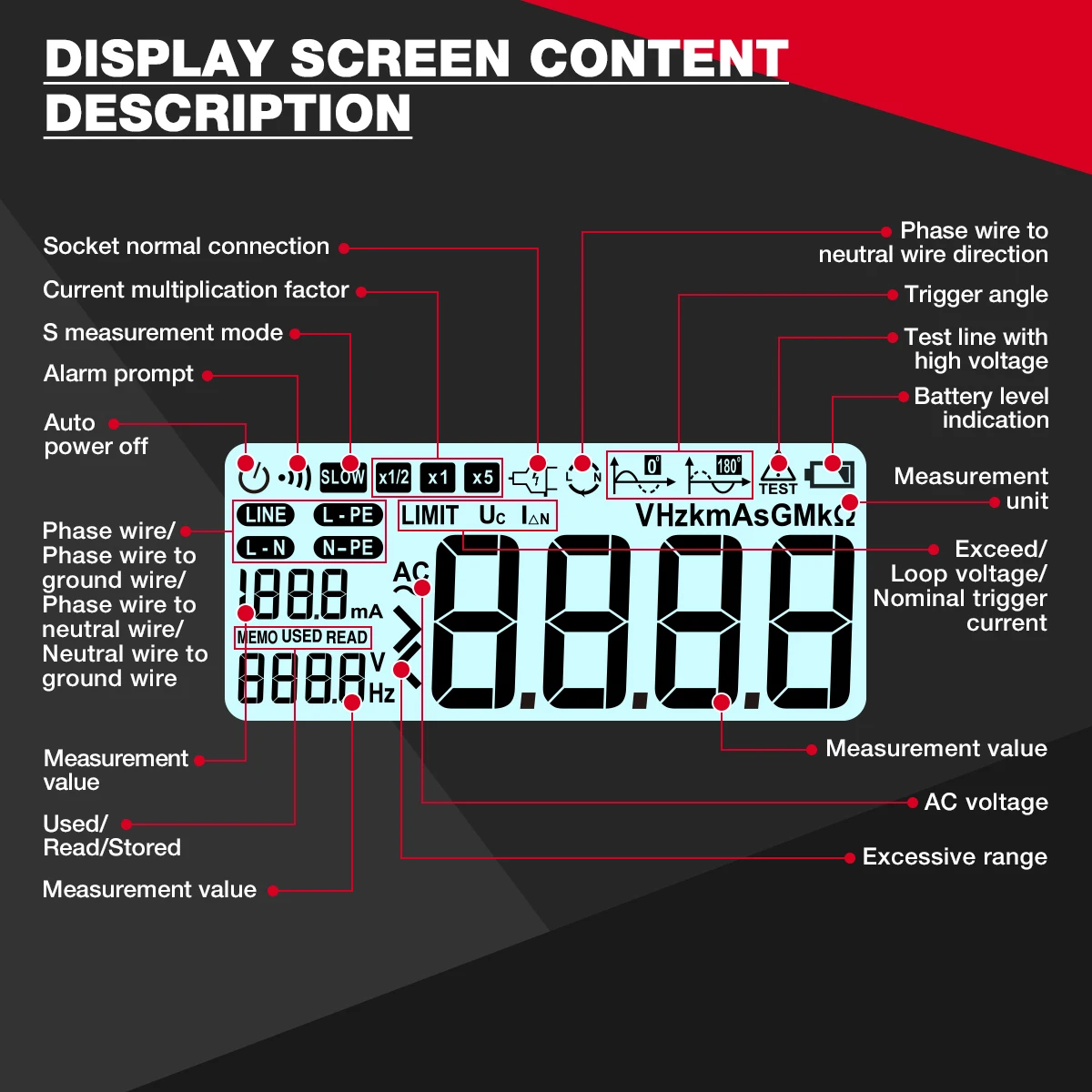

4.7-inch LCD screen with backlight for conveniently checking the test result in the low lit condition.
Powered by 6pcs 1.5V AA batteries(not included), with low battery indication.
Perfect for the electricians to do testing, inspection, and repairing.

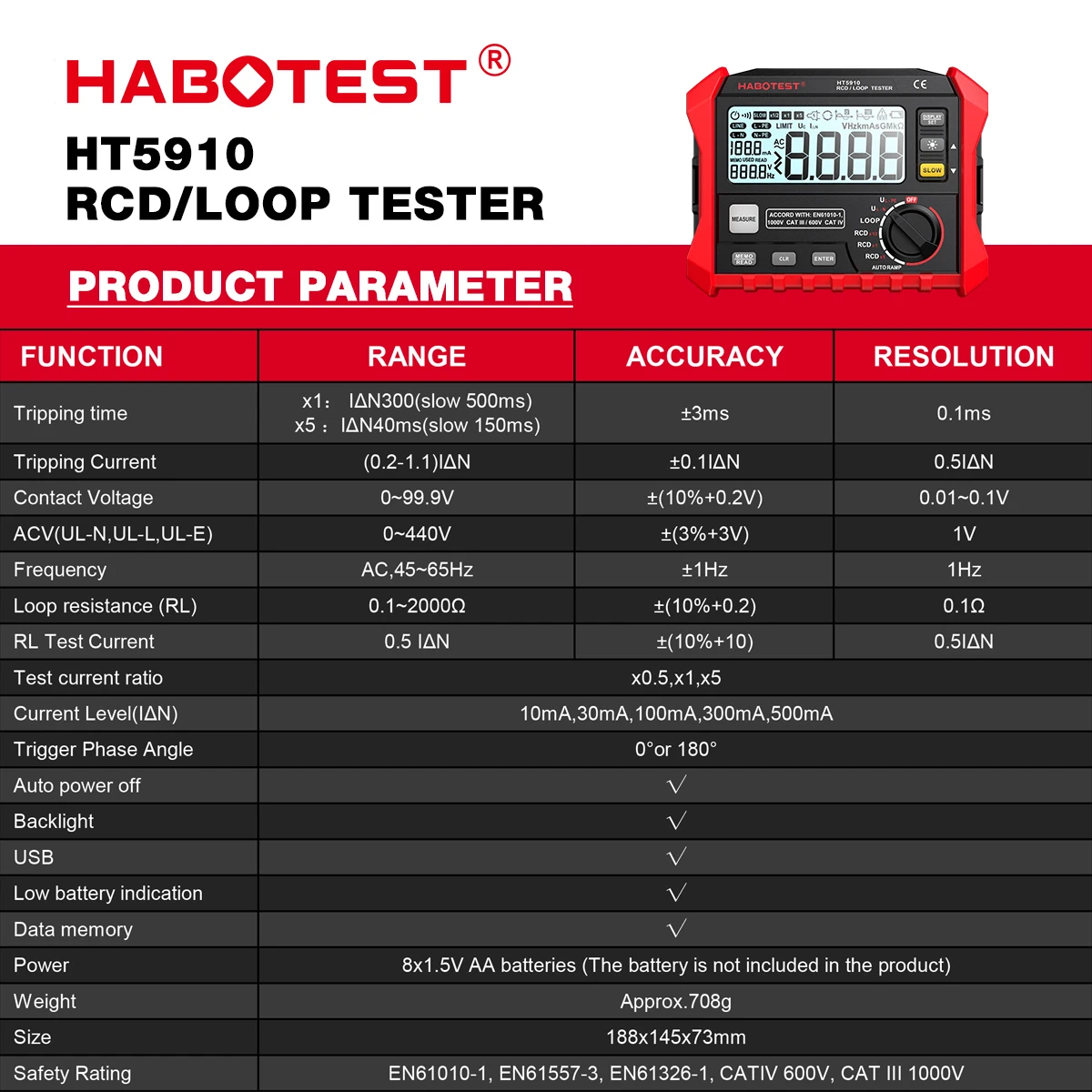

Specifications:
Material: ABS
AC Phase: Voltage Measurement: 0~440V
Frequency Measurement: DC, 45~65Hz
Test Current Magnification: 0.5, 1, and 5
Fast/Slow Current Test Gears: 10, 30, 100, 300, 500mA
Safety Level: CAT III 1000V, CAT IV 600
Max. Common Mode Voltage: 600V AC RMS
Display Type: LCD display
Range Selection: Fully automatic range
Frequency Detection: Automatic
Over-range Display: “>”
Power Consumption: 100mW
Operating Temperature & Altitude: 0~40℃, 2000m
Storage Temperature & Altitude: -20~70℃, 12000m
Power Supply: 8 * 1.5V AA battery (NOT included)

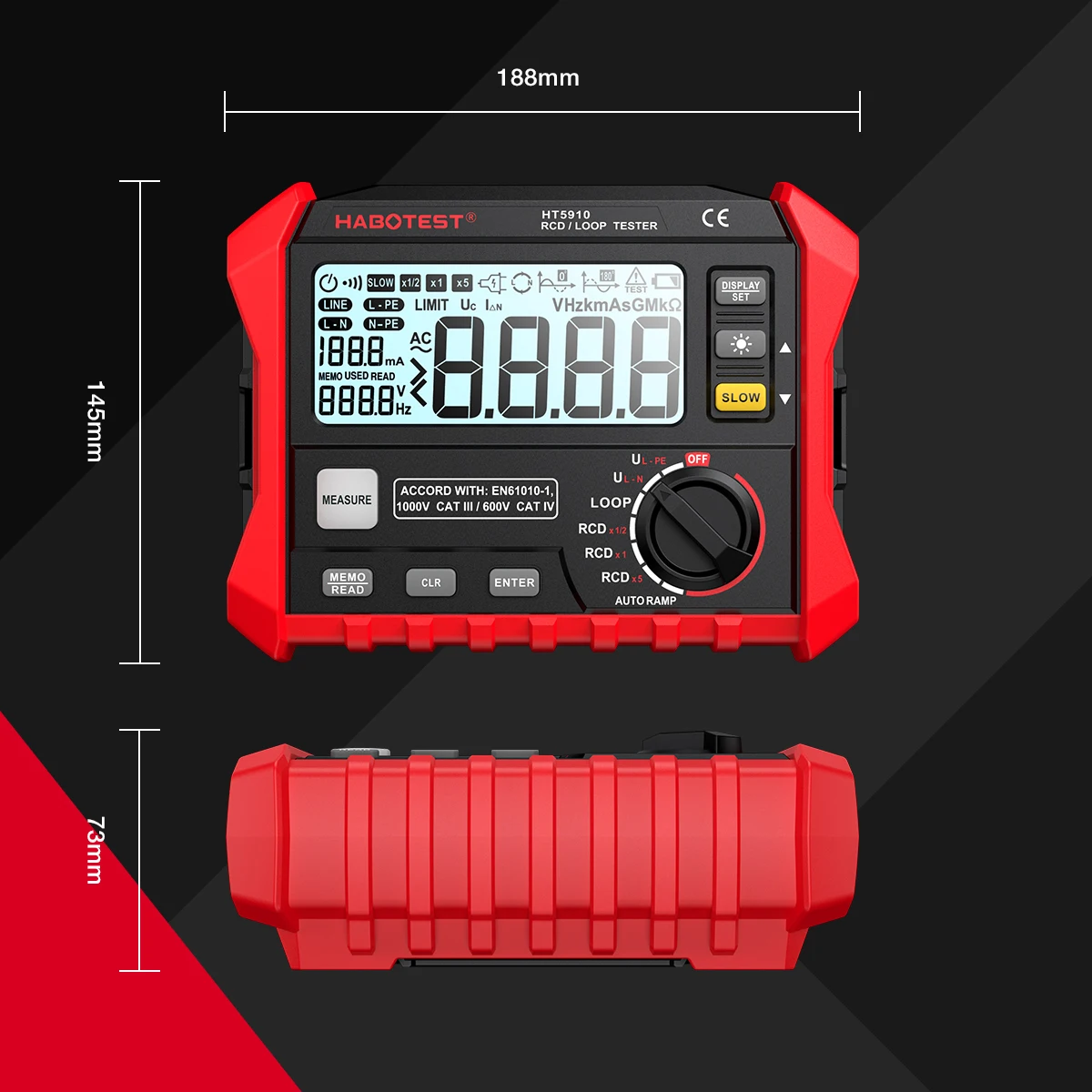

Item Size: 190 * 140 * 68mm / 7.48 * 5.51 * 2.68in
Item Weight: 948g / 33.47oz
Package Weight: 1544g / 54.47oz
Package Size: 33.5 * 27 * 9cm / 13.19 * 10.63 * 3.54in

Packing List:
1 * Tester
1 * Test Lead
3 * Clip
1 * USB Cable
1 * CD
1 * Storage Case
