The H-RADIO 4.17 AIR Firmware Official Registered Code ATS25Max-Decoder Si4732 Radio Receiver is a high-tech piece of equipment designed to tune into a multitude of radio bands, making it a full band radio receiver. Its technological capabilities include FM RDS, AM, LW, MW, SW, SSB, and DSP ATS25 Max.
This tool stands as a versatile and comprehensive solution for all radio sourcing needs. Built into this sturdy yet compact device is a substantial 3.7V 3000mA battery, ensuring lengthier periods of uninterrupted listening and a prolonged device lifespan. As a battery-operated device, it aids to mobility and ease of use, as there are no power cord requirements.
Furthermore, the Si4732 receiver is equipped with an official registered firmware, which, coupled with the ATS25Max-Decoder, guarantees superior signal decoding to produce high fidelity sound. The hardware and software components of this product work seamlessly together to provide listeners with a rich auditory experience.
Whether you’re a radio aficionado or desiring a reliable and comprehensive radio receiver for informational or emergency purposes, the H-RADIO 4.17 AIR Firmware Official Registered Code ATS25Max-Decoder Si4732 Full Band Radio Receiver simplifies radio connection with its integrated features and world-class technology.
H-RADIO 4.17 AIR Firmware Official Registered Code ATS25Max-Decoder Si4732 Full Band Radio Receiver Built-in Battery 3.7V 3000mA FM RDS AM LW MW SW SSB DSP ATS25 Max
ATS25Max-Decoder
Attention:
– ATS25Max-Decoder is an officially authorized version which can support online firmware update.
– Suggestion: WiFi is very power -consuming. Use only when activating keys. It usually only shows the date, time, please close it when you go out to save battery electricity.
– How to view key: Open the panel, click next to click Info, and twist the rotation, look at the picture above. You can see the 8-bit key, the standard is 12-bit. If necessary, please contact us for asking. The key will be stored in the machine for a long time without worrying about the firmware update.
Features:
– Added CW, RTty F4 F8 decoding function and four audio spectrum
– ChangeLog FW 4.16 Air
– Firmware H-RADIO 4.16 AIR
– Optimization of the memory usage of the microcontroller has been carried out to speed up the interface
– Removed the display of the RSSI/SNR signal in the form of a waterfall for the ILI9341 screen
– Fixed a frequency display error for the ILI9341 screen in FM and CB mode
– Fixed audio spectrum output error for the ILI99341 screen
– Improved accuracy of frequency display on the audio spectrum
– Added different modes of operation of the beeper for different modifications
– Fixed a frequency display error in the list of cities
– Fixed the error of displaying the decoder screen in CB mode
– Fixed the error of displaying the clock in the medium and long wave ranges in the synchro mode
– Added FT8 and FT4 decoder
– Changed the display of the DIGI decoding
– Added scrolling of the DIGI decoder buffer with saving decoded data to the decoder.log file in SPIFFS
– Fixed screen scrolling errors in SCAN
– Fixed the error of not muting the sound when starting a scan in SCAN for SYNC modulation
– Fixed the error of getting time via RDS
– Added support for Bluetooth, LNA and a function button for the ATS120 receiver
– Added Bluetooth on indicator, encoder lock and antenna options for all receiver modifications
– Added a quick access panel to Bluetooth settings, encoder lock and antenna options by clicking on the corresponding indicator
– Added SNR definition for SSB modulation based on spectrum analyzer data in the presence of a decoder
– Added the ability to mirror the screen
– SI4732 full-band DSP radio receiver FM LW (MW and SW) and SSB with 2.4 “touch screen
Product Parameters:
– Shell material: aluminum alloy
– 3.7V /4000mA built-in lithium battery
– Type-C charging interface and maximum 1.2A charging current
– Type-c interface upgrade solution
– Support 3.5mm stereo audio output
– Forian interface BNC
– Support 3.5mm audio jack FM antenna
– 2.4 -inch touch screen
– Outage audio power 1.5W

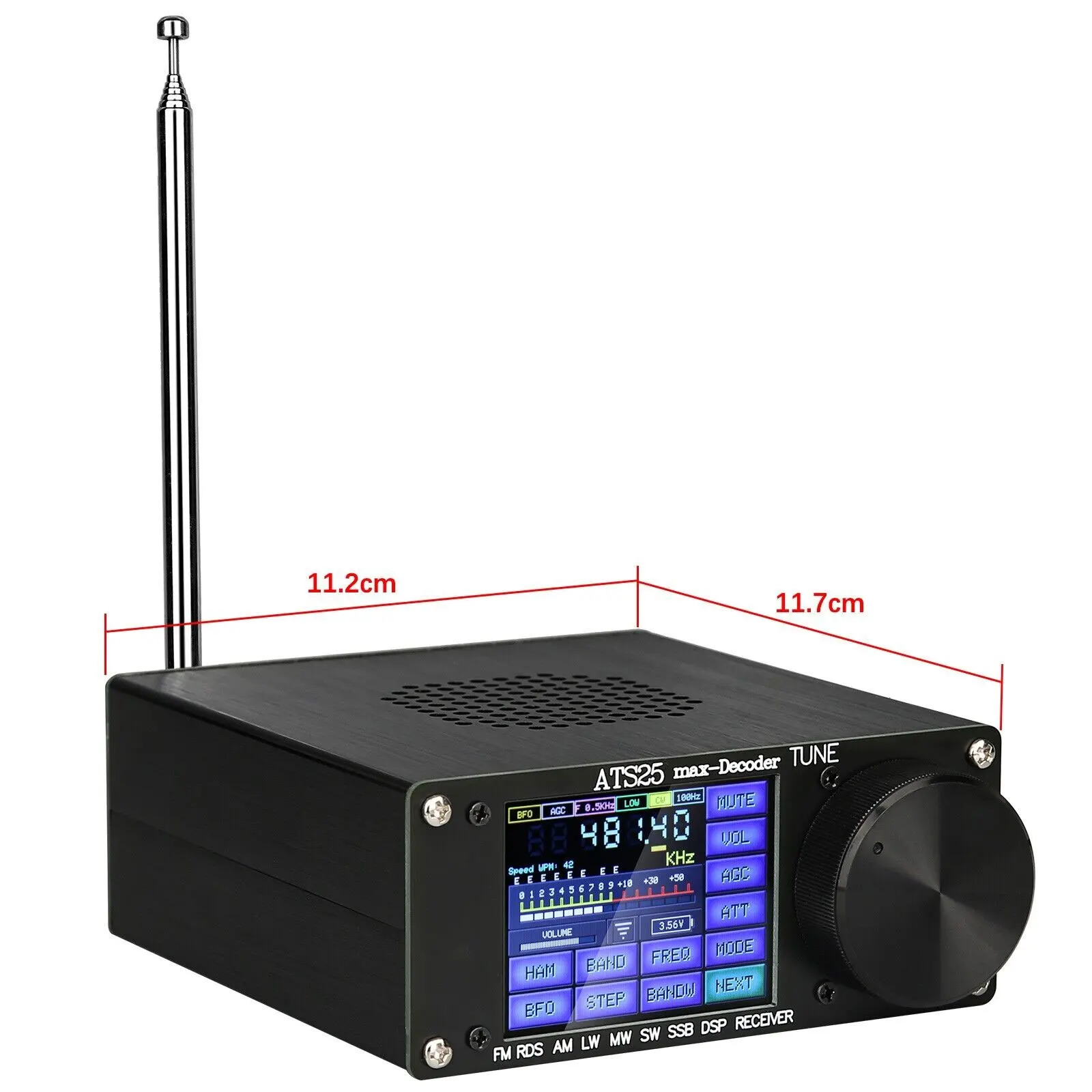

– Product size: 120 x 115 x 48mm/4.7 x 4.5 x 1.9″ (excluding protruding part of the size)
Frequency Range:
– FM: 64-108MHz/RDS function
– LW: 153-500KHz
– MW: 520-1710kHz
– SW: 1730-30000KHz
– SSB: 17030kHz
Functions:
1. With a 2.4 -inch touch screen
2. Support broadcast search
3. Support digital keyboard direct input frequency
4. Support HAM band fast channel
5. Support AM bandwidth: 1-6KHz
6. Support SSB bandwidth: 0.5-4.0KHz
Package Included:

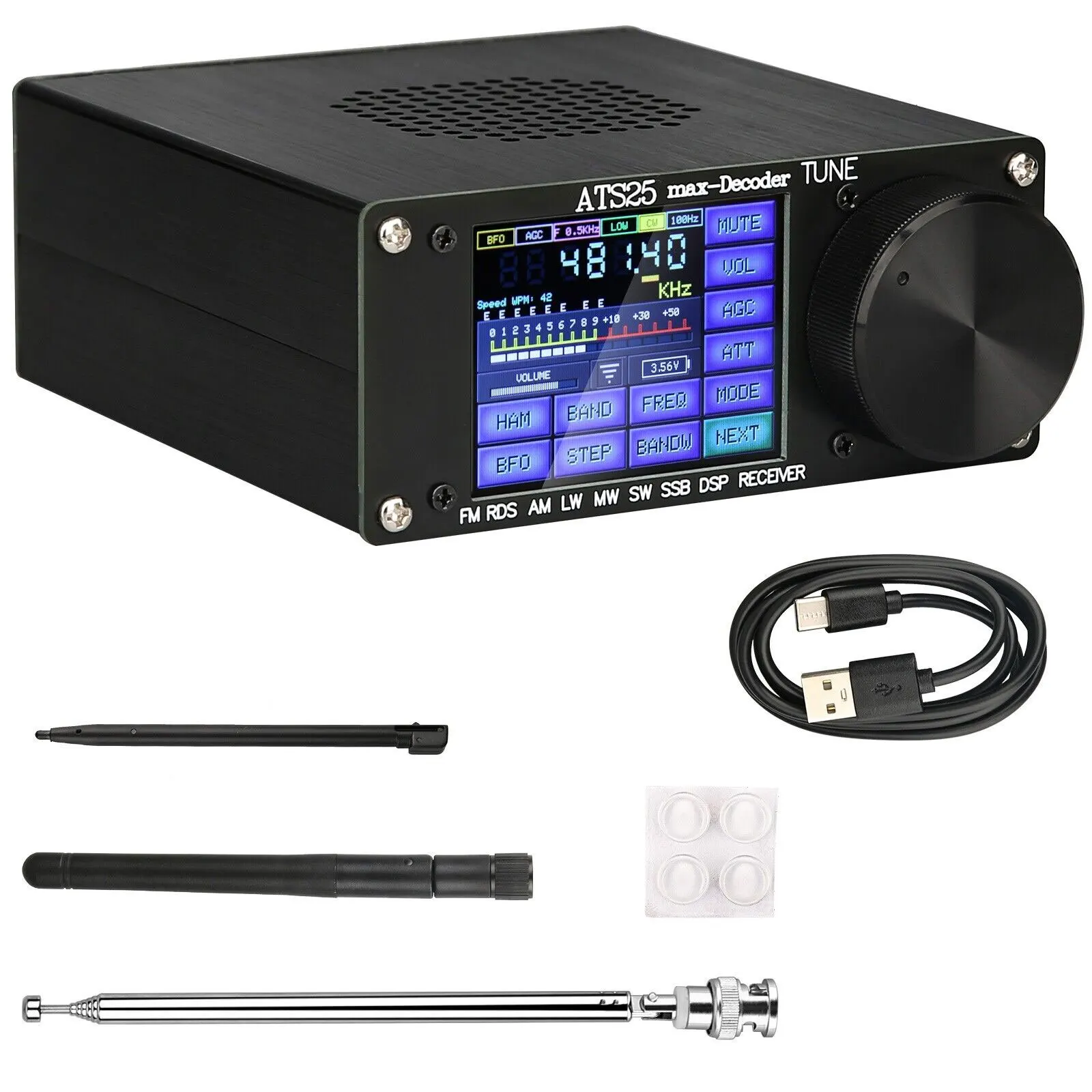

— 1 x ATS25Max-Decoder of Radio Receiver
