Auto Ignition Coil Test Injector Solenoid Valve Idling Stepper Motor Instrument Tester Fault Detector Drive Simulator

$79.00

  • The product is designed to test the functionality and efficiency of auto ignition coils.
  • It also has the capability to check injector solenoid valves, which are crucial parts in vehicle fuel systems.
  • The device can be used to test idling stepper motors, assisting mechanics in diagnosing these key components in engine performance.
SKU: FW-3FCD5A Categories: ,

The Auto Ignition Coil Test Injector Solenoid Valve Idling Stepper Motor Instrument Tester Fault Detector Drive Simulator is an essential tool designed to evaluate the performance of various engine components. The device is primarily used to analyze and diagnose issues related to auto ignition coils, injector solenoid valves, and idling stepper motors.

The tester can effectively detect failures and faults in these components, enabling timely maintenance and repairs to prevent further damage to the vehicle’s engine. It is also used as a drive simulator to examine the functioning of the motor instruments under various operational conditions.

The device thus plays a critical role in ensuring the optimal and efficient performance of an automobile. By identifying potential issues in the early stage, it helps in reducing the risk of major breakdowns. Thanks to this tester, identifying and rectifying mechanical issues becomes less of a hassle, leading to more accurate and reliable results.

Therefore, the Auto Ignition Coil Test Injector Solenoid Valve Idling Stepper Motor Instrument Tester Fault Detector Drive Simulator is an indispensable tool for mechanics, technicians, and car enthusiasts who want to ensure the best performance of their vehicles.

Upgraded Drive QDB-4A Automobile Ignition Coil Tester Injector Solenoid Valve Idling Stepper Motor Instrument Fault Detector

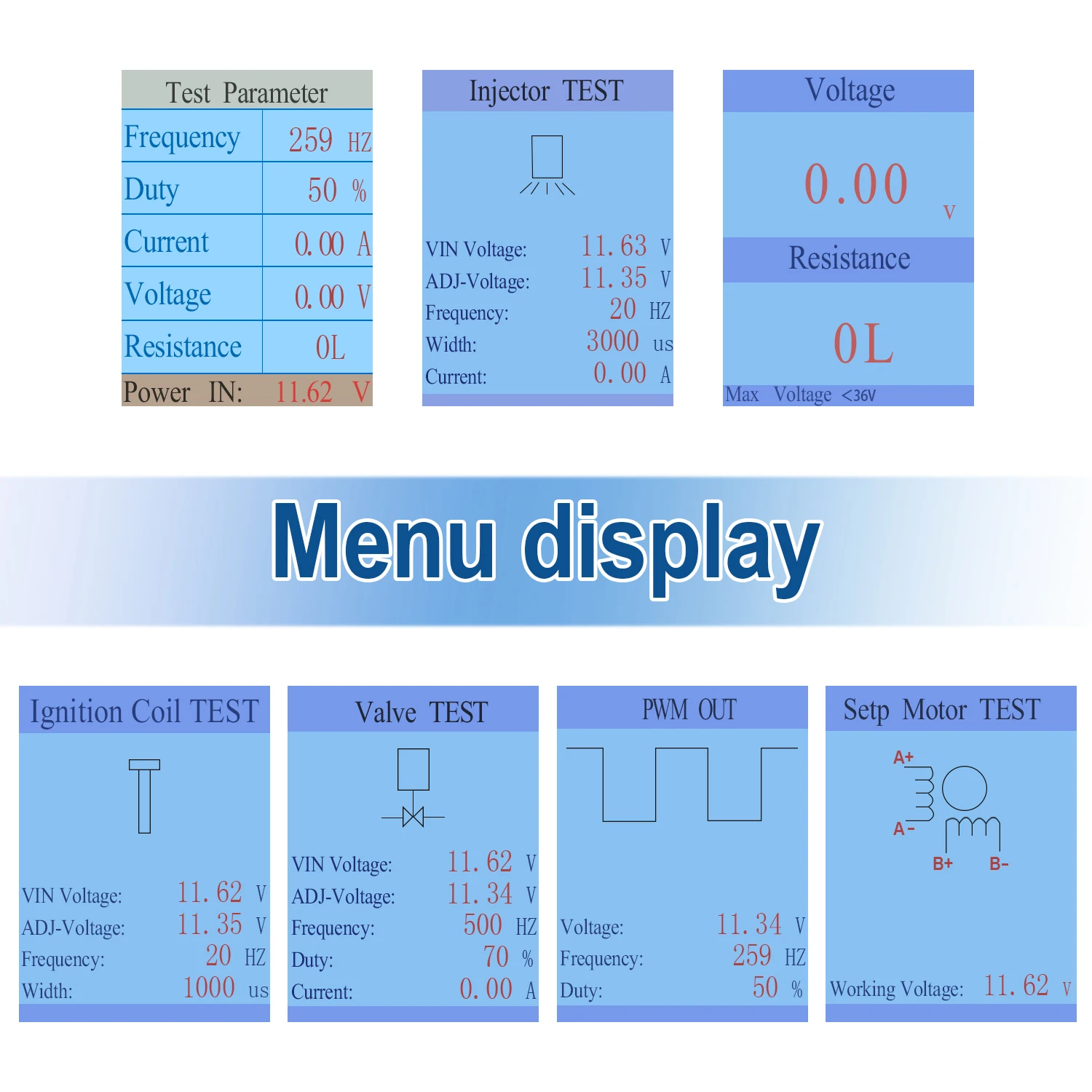

Large screen, and more Easy to operate

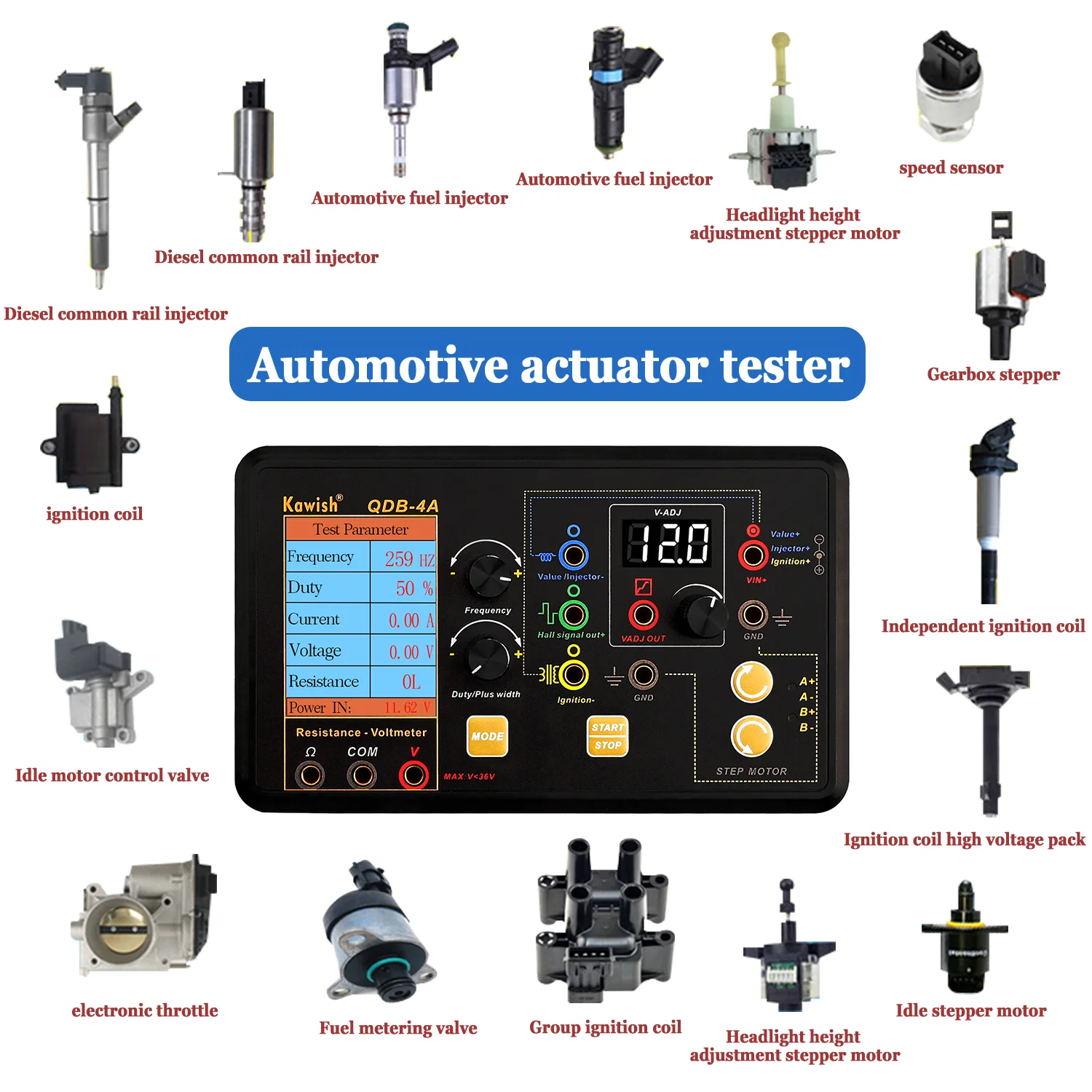

Product Main Functions:
1.Drive test ignition coil:including independent ignition,coil type,Module Type.
2.Drive test fuel injector:including gasoline-powered car 12V fuel injector,diesel vehicle 12V 24V fuel injector.
3.Drive and test solenoid valves and fuel metering valves controlled by various duty ratios.
4.Drive and test motors controlled by various duty ratios,urea pump motors,etc.
5.Drive and test idle stepping motors,instrument stepping motors,headlight follow-up steering stepping motor and so on.
6.Hall signal with adjustable output frequency,amplitude and duty ratio.Used to simulate various duty cycle sensors,such as air conditioning pressure sensor(duty cycle type),
air flowmeter(duty cycle type),etc.
7.Power supply voltage range:12V-24V,with reverse connection protection,overcurrent protection.
8.Electromagnetic coil driving current range:0-3.5A
9.Output frequency range:1HZ-100KHZ
10.Duty cycle adjustment:1%-100%
11.Adjustable voltage:1.25V-11.5V
Product Specification:

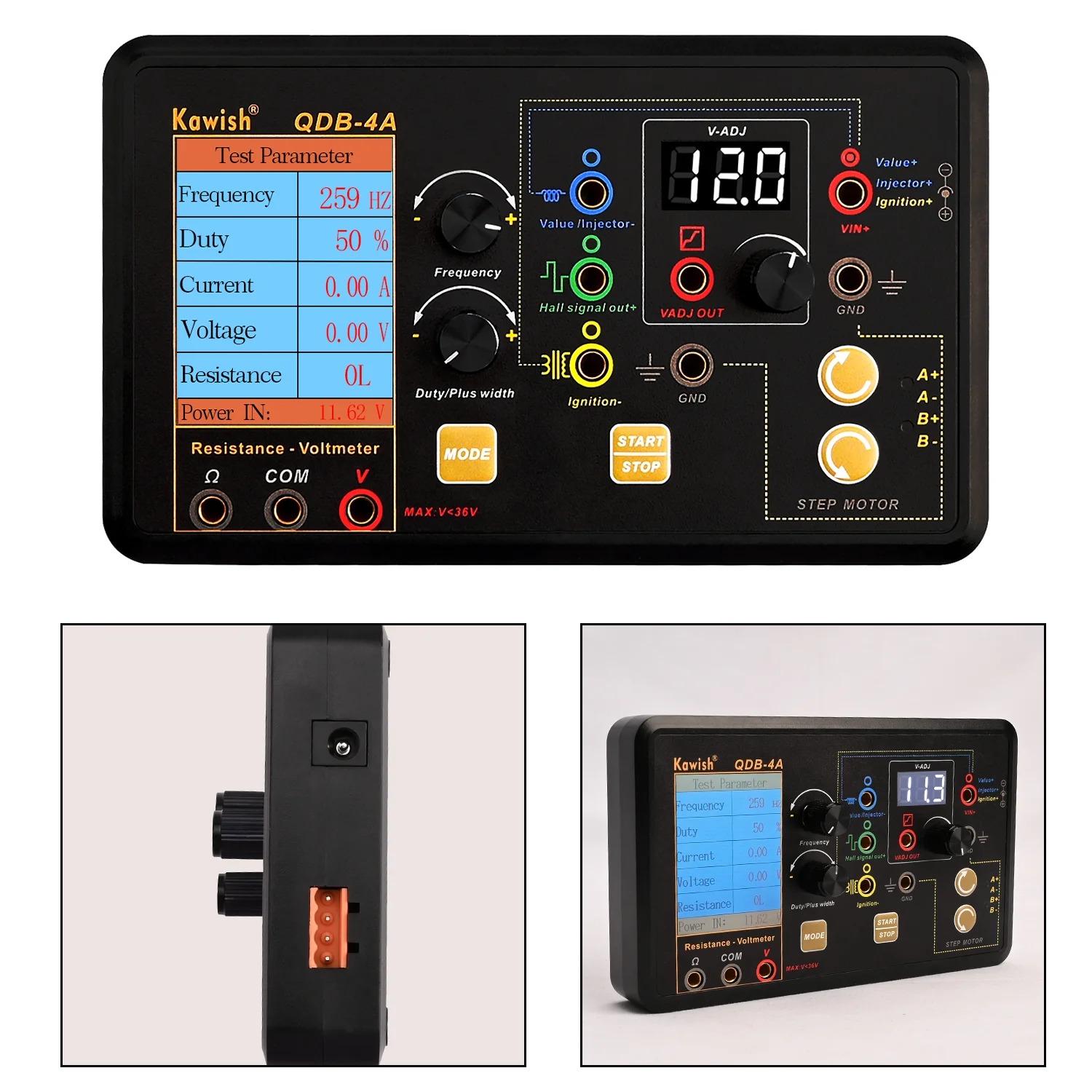

Model:QDB-4A
Power In:DC 8-28V
Power Out:0-2.5A
VADJ Out:0-1.5a
DMM:DC 0-30V/0-1M
PWM:1-100KHz/0-100%
Step Motor:Max 15A
Product SIze:17×9.8×2.8cm
Product Weight:About 175g
1 set Weight:About 0.39kg
Packing :Packing in colorful box

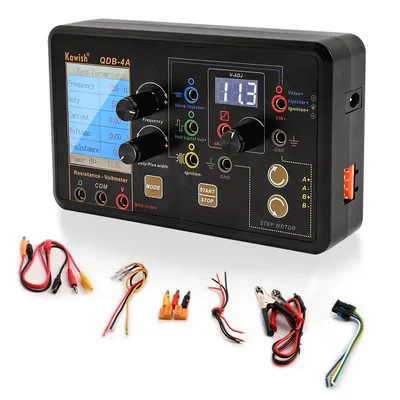

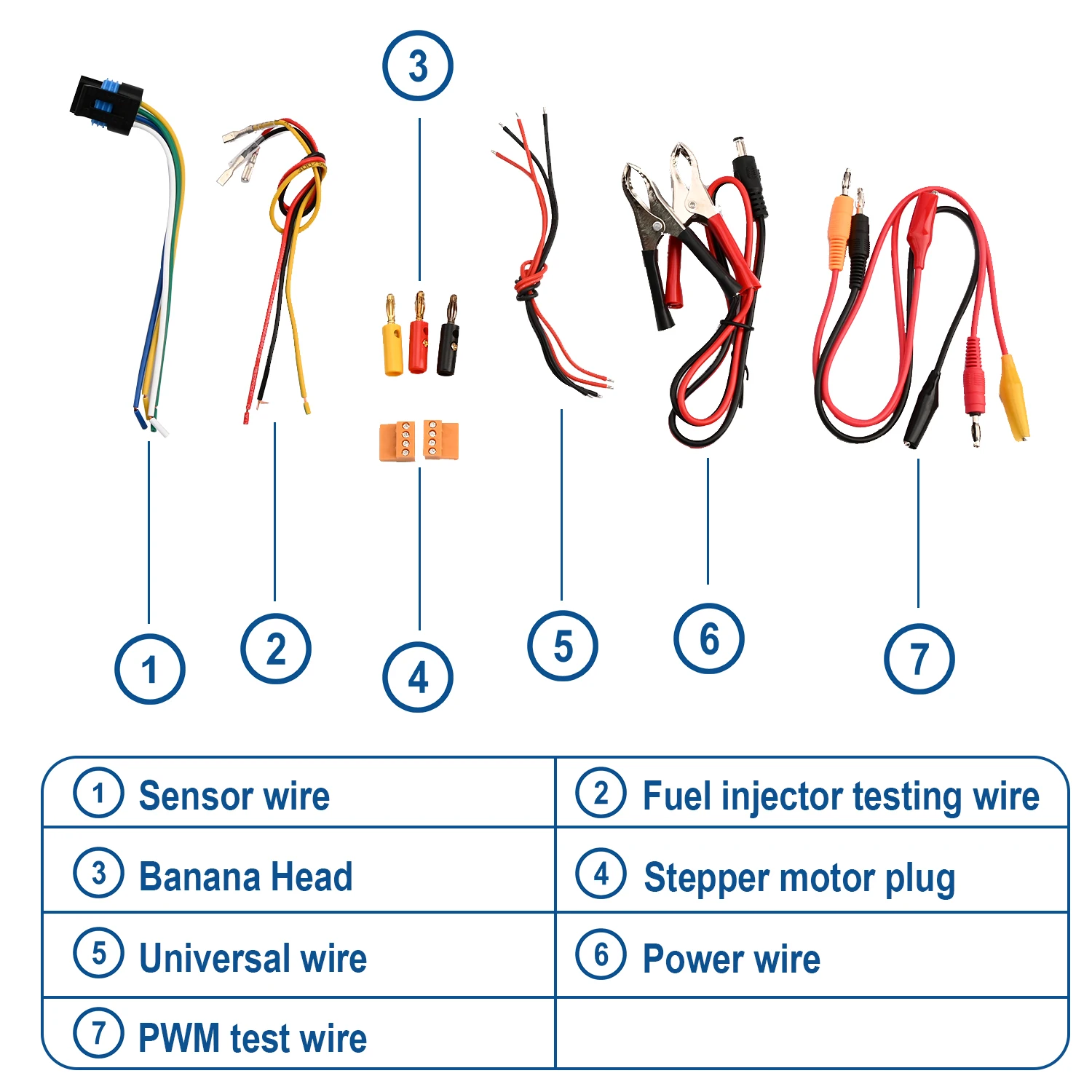

Package Including:

1 x QDB -4A

1x power cable

3x test connect cables

4xsingle plugs

1xIdle speed stepper motor plug

1xStepper motor welding cable
