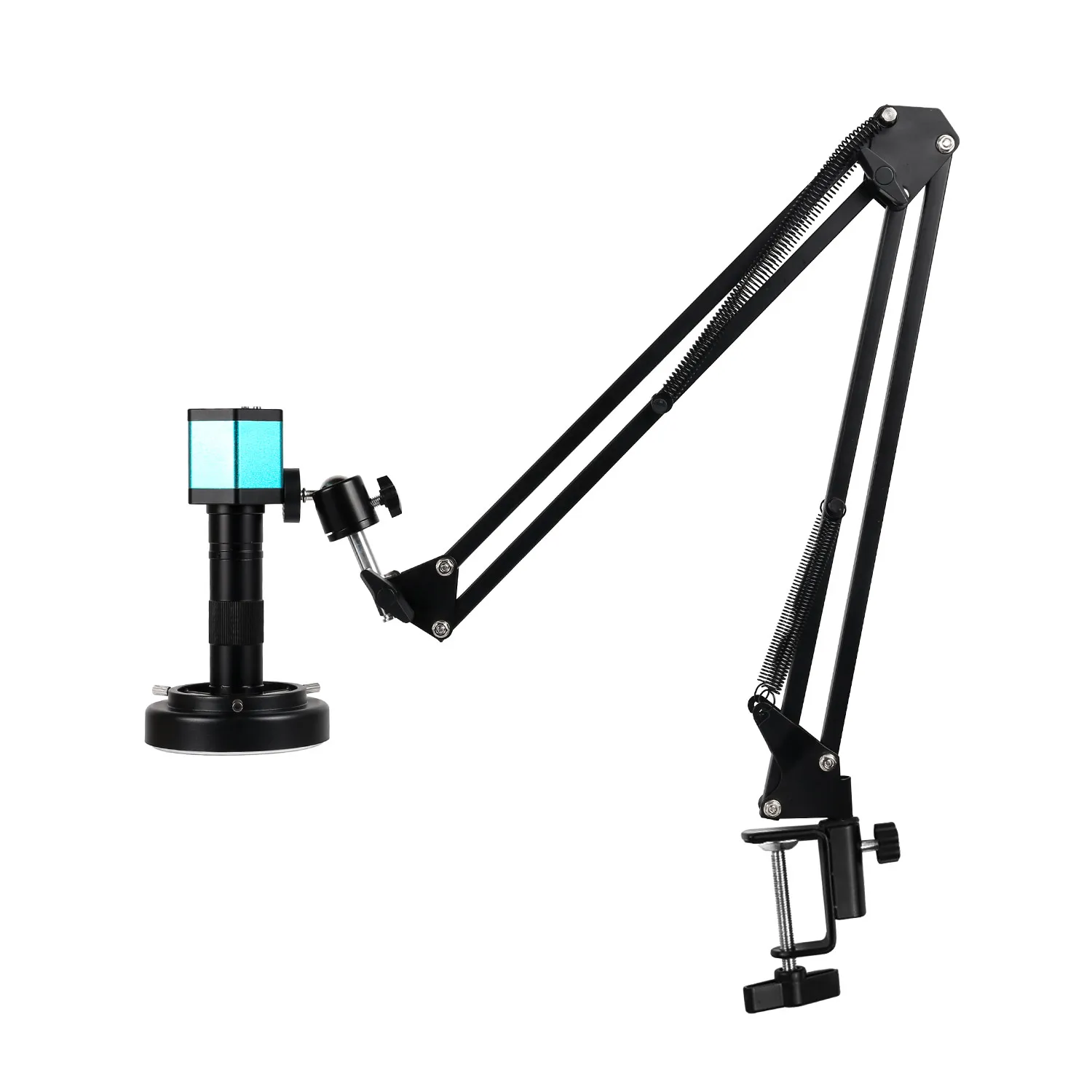

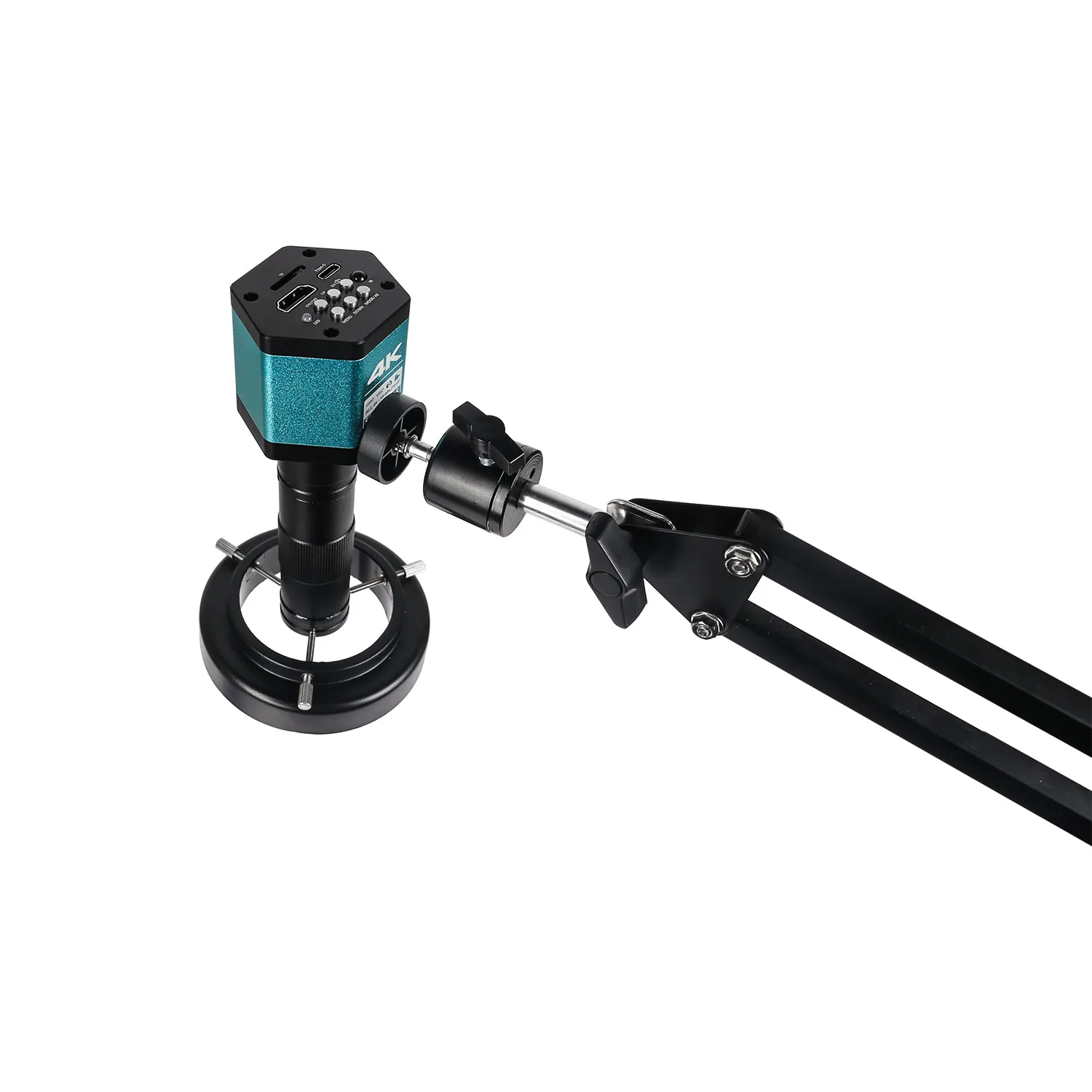

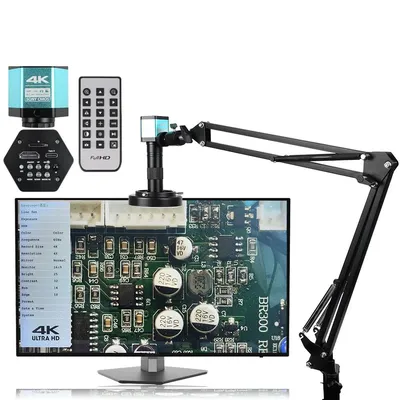

The 4K Microscope 48MP Digital Microscope for Electronics is a high-powered, advanced examination tool. It is built with a 48 Megapixel camera, offering crisp, clear, and highly detailed images in 4K resolution. This microscope is specially designed for intricate works such as inspecting electronics, due to its 1-150X zoom capability which allows optimum visibility in small areas. Its USB feature supports effortless connection to devices for data transfer, while its HDMI output enables real-time monitoring on compatible screens. The microscope includes a versatile C-Mount Lens, allowing for different lens attachments for varied magnification requirements. Moreover, the device is instrumental for phone PCB soldering processes, providing precision that other devices cannot offer.
This digital microscope ensures examination and inspection work at the most minute level is beneficial for professionals like researchers, technicians, or hobbyists to observe fine details that are inaccessible to the naked eye. It allows for precision in inspection that would be improbable to achieve otherwise. The device’s fusion of advanced technology with practical design elements makes it a valuable tool in many industries, especially those requiring detailed inspection and precise operations.
Be sure to use the microscope in a bright environment, otherwise the image will not be clear.
| Product Image | |||
| product code |
A |
B |
C |
|
characteristiccharacteristic |
Ultra HD 4K |
48MP |
13MP |
| Output Interface |
HDMI Type-C-USB |
HDMI USB |
HDMI VGA |
| Sensor brand |
Sony |
Sony |
Gekewei |
| Remote control function |
√ |
||
| shutdown button |
√ |
× |
√ |
| Computer software |
√ |
√ |
× |
| One-click defrost |
√ |
√ |
× |
| One-click freezing |
√ |
√ |
× |
| camera function |
√ |
√ |
× |
| Video recording |
√ |
√ |
× |
| battery model |
CR2025 |
||
| language settings |
Chinese / English |
||
| Line settings |
√ |
||
| Electronic zoom |
√ |
||
| Exposure adjustment |
√ |
Product description:
A：Ultra HD 4K Camera
◆Using Sony sensor;
◆Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;
◆HDMI 1080P 60 frames image output;
◆TYPE-C driver-free output 1080P 30 frames image output;
◆4K video recording;
◆48 million photos, JPG format;
◆One-click freeze/thaw function;
◆1080P video recording;
◆Electronic zoom function;
◆Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;
◆Provides 16 line functions, with adjustable line color, thickness and position;
◆Provide center crosshair display/off;
◆Support TF card storage, up to 64GB;
◆Support remote control operation, take pictures without shaking and the image will be clearer;
◆Support Chinese, Traditional Chinese, and English menu languages;
◆Supports saving shutdown setting parameters;
◆Aluminum alloy shell processed by CNC precision milling technology;
48MP HDMI USB 4K Camera:
B Camera
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel SONY sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A
C Camera
Pixel array:13MP
The sensor: gc2053
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3″
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

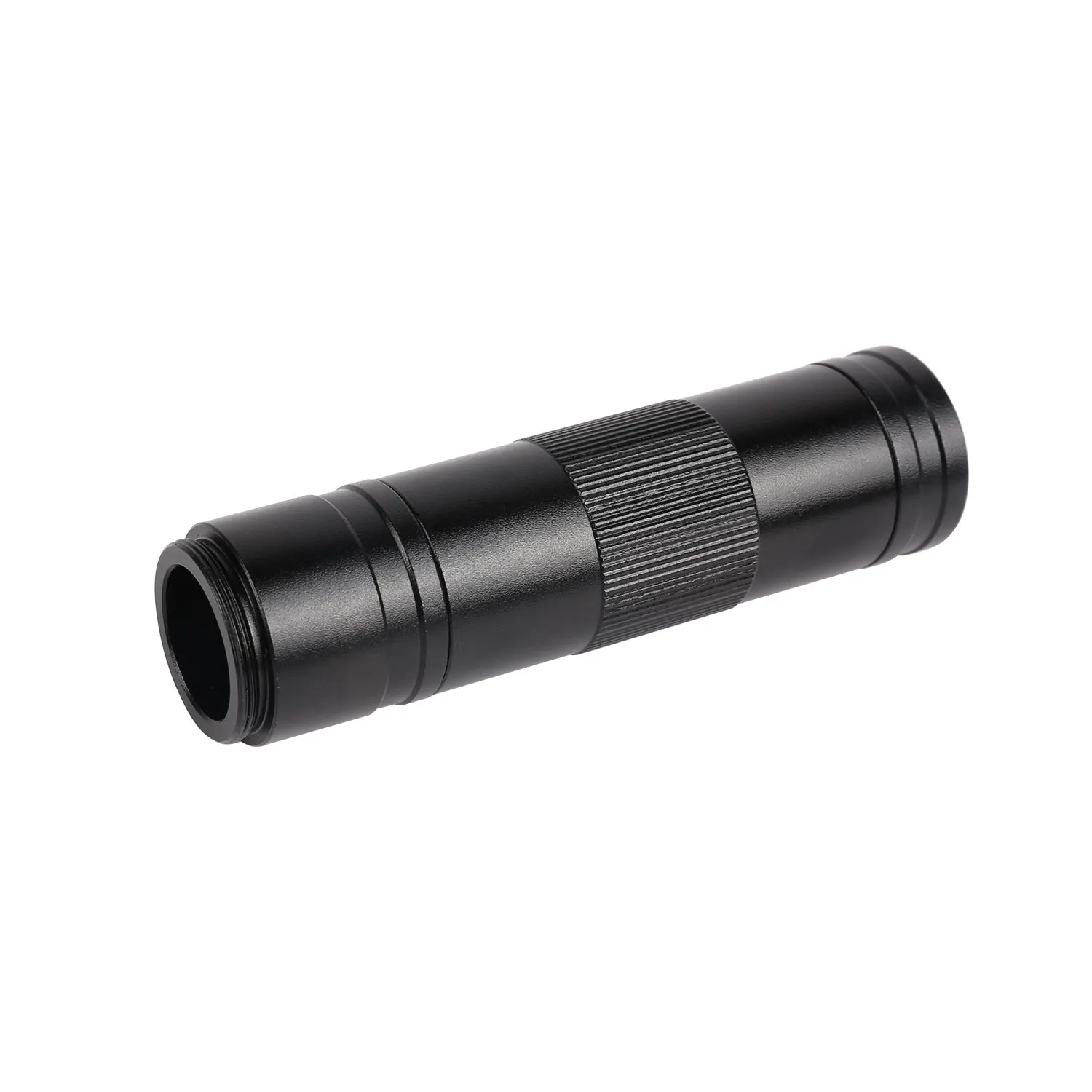

1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 – 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
56 bright white LED bulbs：
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm

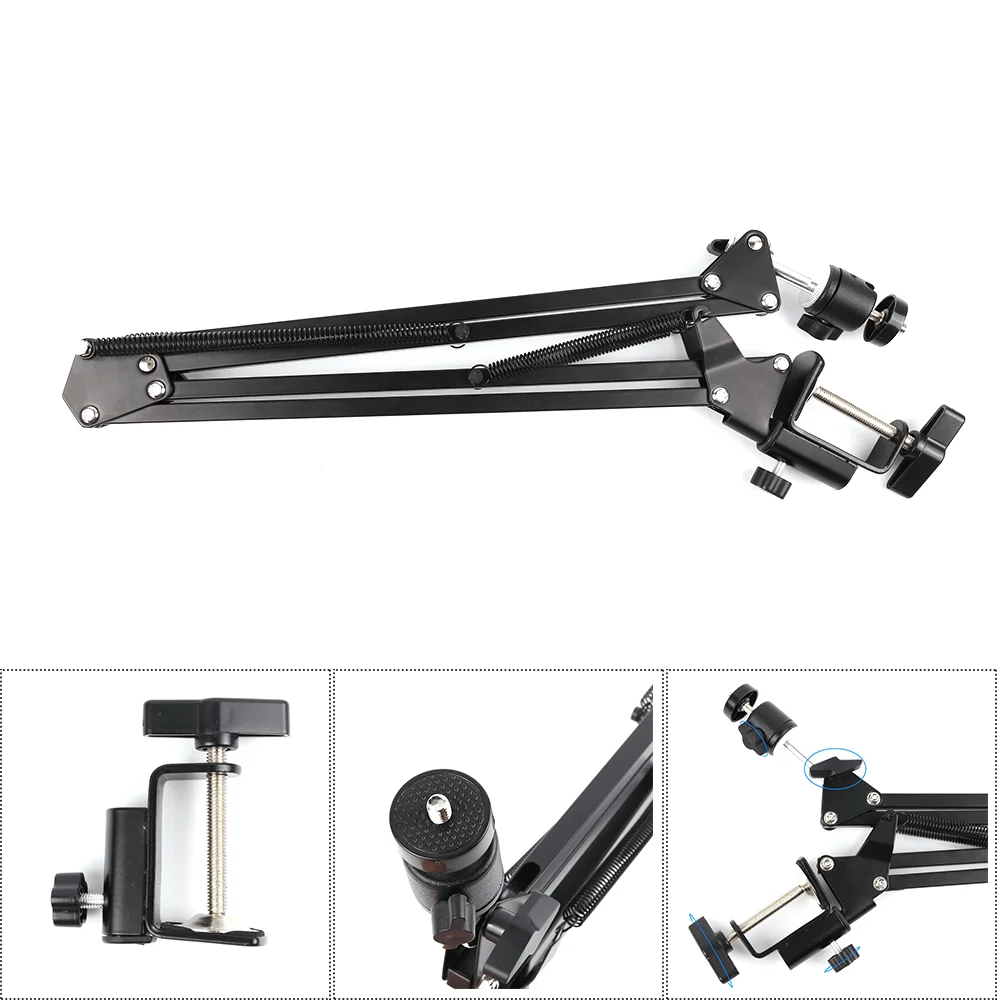

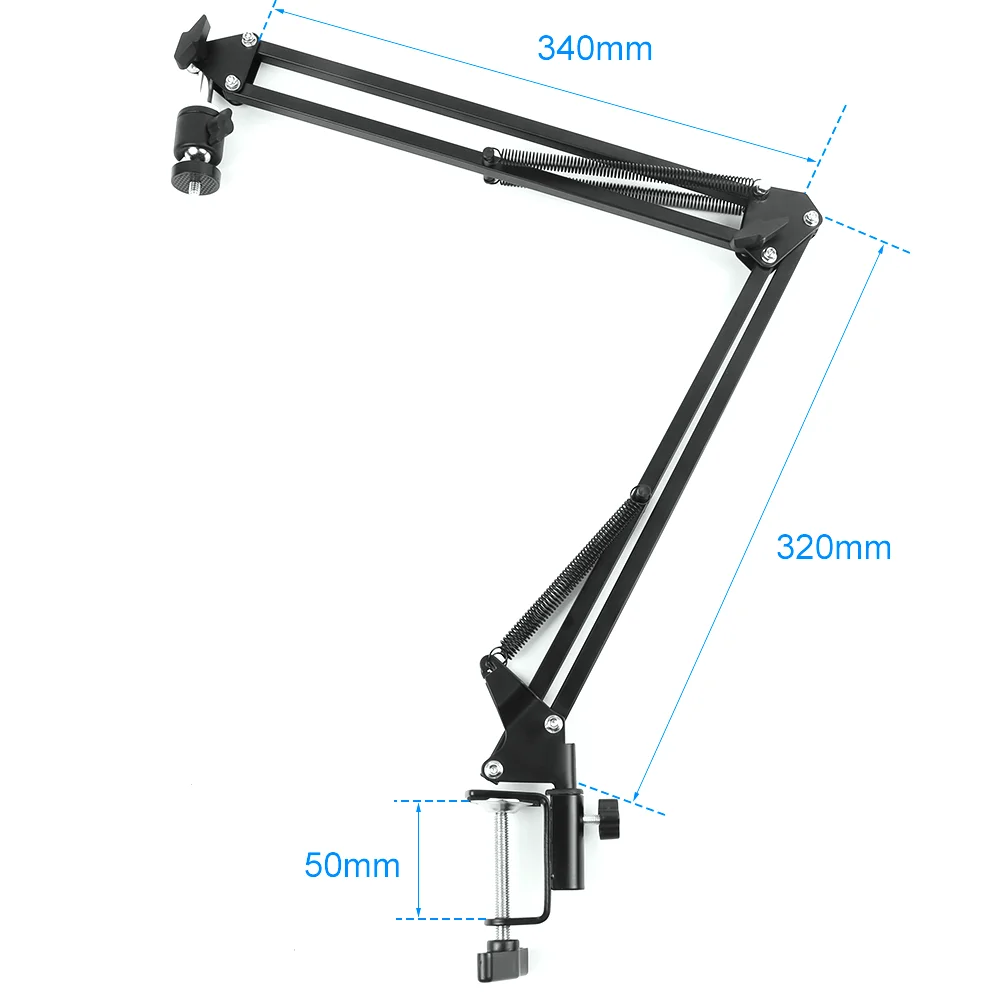

Adjustable bracket ：
size: 340mm+320mm
Maximum thickness of bracket installation: 50mm
It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.
List of packing：：
1 x Microscope Camera Set
1 x 150X lens
1 x 56 led ring light
1 x Stand
